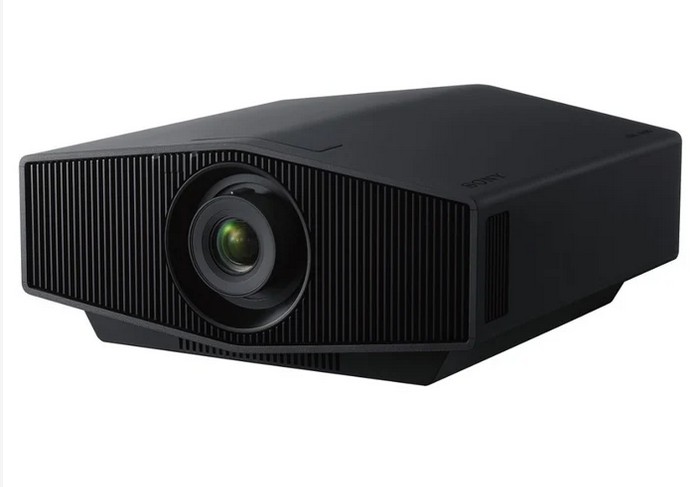

Sony 4K Laser Projector Repair (VPL Series)

Where a traditional lamp relies on arc stability and ballast control, a laser‑phosphor projector substitutes a bank of high‑brightness blue lasers, a phosphor target, and a colour‑mixing path that must hold alignment, temperature, and drive current within tight windows. The upside is consistency: rapid start‑up, slower ageing, and a light source free of arc wander. The catch is that small deviations—bearing wear in the phosphor wheel, TIM fatigue on drivers, a lazy fan curve—translate into perceptible colour wobble or output dips. Our workflow is designed to catch those drifts early and reset the system to a predictable state.

We begin with a non‑invasive assessment: cold‑boot behaviour, fan RPM mapping, thermal sensors at idle and load, interlock status, and driver telemetry where models expose it. We also listen. Bearings, PWM stepping, encoder ticks—sound often betrays the failing part before telemetry throws a warning. Only once we’ve stabilised power and airflow do we touch optics: dust loading on light‑path windows, phosphor contamination, alignment shims and seals.

Every decision protects longevity. Overdriving a laser bank to compensate for a clogged heat sink is short‑term thinking; we clear the heat without pushing current beyond design intent. Replacing a phosphor wheel without addressing the bearing whose skew tripped the error simply postpones the issue. We focus on root causes.

In practice, this approach means your projector comes back quieter, more stable and ready to hold calibration for longer. It also means we’ll sometimes recommend a small change to the room—ventilation or dust control—so the fix sticks.

We document baseline numbers and sounds. If a fan or bearing changes voice during soak testing, we investigate the cause—not just the code it throws.

Colour Wobble Under Load

Minor wheel wobble or thermal drift in laser drivers can produce subtle but irritating hue shifts during bright scenes. We examine encoder feedback, bearing play and driver current stability over long runs to isolate whether the issue is mechanical or electrical.

Periodic Shutdowns

Interlock chains are strict by design. A marginal switch that opens as plastics expand can mimic a critical fault. We scope the interlock loop during a controlled heat rise to confirm continuity. Where access permits, we replace fatigued components rather than simply cleaning contacts.

Flicker That Ignores Source Changes

Flicker that persists across inputs points to the light source or its drive. PWM irregularities or wheel balance issues are typical. We load‑step the driver and watch output with high‑speed capture to observe the exact frequency before making changes.

Fan Surging & Noise

When fan curves fight dust and TIM fatigue, noise increases and the projector may yo‑yo around a thermal limit. Restoring the thermal pathway—clean sinks, correct fans, fresh paste—prevents the system from living on the edge of throttling.

Brightness Dips After Warm‑Up

Dimming that appears 30–60 minutes into a session suggests the thermal envelope is closing. We instrument the projector with thermocouples on key sinks and compare telemetry against reality, then correct the highest resistance points first.

Handshake Glitches

High bandwidth runs expose weak links in HDMI chains. We validate EDID flow, isolate sources and check the projector’s scaler/HDCP state. In borderline cases we’ll recommend active optical leads or HDBaseT with quality terminations.

Persistent Dusty Look

Even small dust films cause “sparkle” or a grey veil over whites. We clean with lint‑free methods and re‑seal paths to slow recontamination, then recalibrate to confirm neutrality across the field.

1) Intake & Baseline

We log model, firmware, reported symptoms and any blink codes. The projector is run from cold to hot while we capture RPMs, sensor values and power rail behaviour. If an issue is intermittent, we extend soak time to force the fault to appear.

2) Power & Interlocks

We verify standby supplies, soft‑start behaviour and brown‑out thresholds. Interlock continuity is scoped during warm‑up; micro‑switches or harnesses that drift open are replaced.

3) Thermal Path

Fans are measured for correct RPM/PWM response; we replace tired bearings with like‑for‑like profiles. Heatsinks are cleaned and re‑pasted with appropriate TIM, and ducts resealed to restore intended airflow.

4) Laser & Phosphor

Drivers are inspected under load steps for current stability. Phosphor wheels are checked for balance and bearing noise; encoders are cleaned or replaced. We never bypass safety interlocks.

5) Optics & Cleanliness

Windows and prisms are cleaned using manufacturer‑safe solvents and lint‑free technique. Any evidence of contamination is addressed methodically from source to screen.

6) Calibration & QA

We reset colour balance and gamma appropriate to your room. Warm‑up drift is measured and finalised after a soak; results are documented for your records.

Conference Room VPL With “Laser Warning”

A VPL laser model arrived with intermittent laser warnings at peak output. We mapped sensor values and found driver temperatures ramping faster than expected. Thermal paste was dry and the fan curve flattened due to dust‑packed fins. After a full thermal refresh and driver reseat, telemetry stabilised and warnings ceased. A follow‑up calibration tightened neutrality under long sessions.

Colour Drift After 45 Minutes

In a corporate auditorium, subtle green shift crept in during long presentations. A slightly imbalanced phosphor wheel produced periodic encoder jitter. Bearing replacement and balance correction eliminated the drift; we verified stability with ΔE tracking over a two‑hour soak.

Noise & Flicker in a Bright Room

A classroom projector exhibited fan surging and image flicker that ignored source changes. Power quality was borderline with daisy‑chained extensions. We corrected mains runs, refreshed TIM, cleaned optics and documented a proper fan curve. Flicker disappeared and the projector ran quieter at the same brightness.

We arrange insured courier collection across the UK & Ireland. Our team will advise whether to ship with the ceiling mount attached (usually no), whether to remove the lamp (for mixed fleets) and how to secure accessories. We provide a packing checklist and can supply foam if needed. On return, your projector includes a service summary and recommended maintenance cadence tailored to your environment.

For large venues or tight timelines, we can schedule onsite diagnostics to confirm whether shipping is necessary. If a fault turns out to be environmental—airflow, power or cabling—we’ll document the fix so the projector avoids a trip altogether.

Repairs include a parts‑and‑labour warranty. Where a model’s age makes a specific component supply‑limited, we’ll explain the options clearly and document the risk of recurrence. We prefer conservative drive settings that extend life rather than chasing short‑term peak output.

Aftercare includes filter schedules, environment checks and a suggested re‑calibration point to account for slow light‑source ageing. If changes in your room introduce new constraints, we’ll help you adjust settings or screen gain to keep images clean and comfortable.

How long do laser sources last?

They age slowly, but output still declines over time. Most installations plan for many thousands of hours before noticeable dimming, provided thermals remain healthy. We calibrate to realistic expectations so you don’t chase numbers at end‑of‑life.

Do you update firmware?

Where the platform supports it and it’s relevant to a fault or stability, yes. We avoid updates simply for novelty; stability comes first.

Can you repair water or smoke damage?

We assess on intake. Smoke contamination often requires deep cleaning; water damage depends on exposure and corrosion. We’ll advise honestly before proceeding.

Will you collect from outside the UK?

We regularly serve Ireland; continental EU is possible by arrangement. We’ll advise on customs paperwork when applicable.

Will calibration change the Sony look?

No. We aim to restore neutrality and contrast while respecting Sony’s intended tonality and motion behaviour.

What if parts are discontinued?

We maintain networks for legacy parts and can recommend donor solutions where ethical and reliable. If a risk remains, we document it clearly.
