Sony Projector Repair — SXRD, 3LCD, 4K Laser, Lamp & LED
Wells Electronics Ltd delivers specialist repair for Sony VPL home‑cinema and professional projectors across the UK, Ireland and Europe. From SXRD optical block restoration and laser module service to power, thermal and image‑quality issues, we perform component‑level diagnostics and repairs designed to restore fidelity, brightness and reliability while preserving the projector’s original character.
Sony Projector Types We Repair
We support the full spectrum of Sony projection technologies. Each card outlines typical characteristics and common service themes for that class.
Sony SXRD (Silicon X‑tal Reflective Display) projectors
Native contrast and smooth gradation are hallmarks of SXRD. We address panel ageing, colour non‑uniformity, convergence drift, dust ingress and polariser/prism issues that degrade fidelity over time.
Sony 3LCD models
Bright, colour‑rich imaging ideal for education and corporate settings. We service LCD panel assemblies, polarisers, light‑engine filters, fans and PSU rails to stabilise brightness and colour balance.

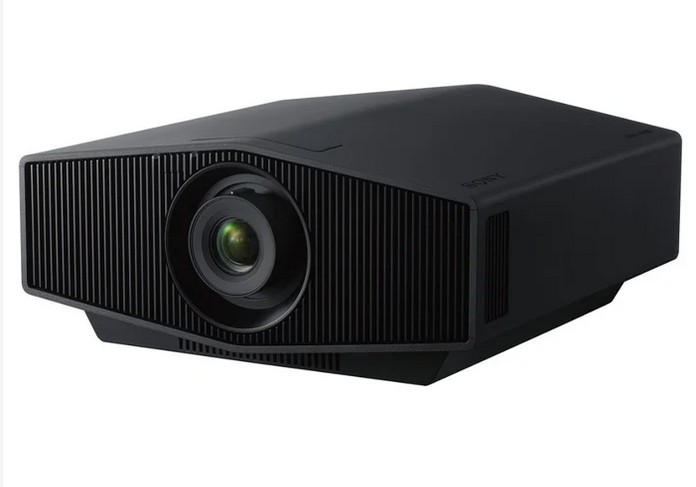

Sony 4K Laser Projectors (VPL series)
Long‑life laser phosphor systems deliver stable luminance and swift start‑up. We handle laser driver boards, phosphor wheel assemblies, thermal paths, and safety interlocks that govern output and reliability.
Sony Lamp‑Based Models (VPL‑HW, VPL‑VW, etc.)
We restore power and image performance by servicing lamp ballasts, ignition stages, temperature sensors, fans and intake ducts. Correct thermal management is essential to lamp stability and lifespan.
Sony LED & Hybrid Light Source projectors
Solid‑state engines benefit from dust control and robust cooling. We repair driver stages, colour‑mixing optics, and PWM control issues that can manifest as flicker, colour shift or dimming.
Our Diagnostic Approach: Preserve, Stabilise, Restore
Sony’s projection platforms reward a methodical approach. Our workflow begins with a non‑invasive examination to capture the unit’s current state: power‑up behaviour, thermal profile, fan RPM mapping, sensor telemetry, error logs (where available), lamp/laser life counters, and panel convergence metrics. We follow with internal visual inspection, checking air pathways, filter condition, dust loading on optical surfaces, and signs of electrolyte leakage, heat‑stressed solder joints, or cracked connectors.
From there we profile each subsystem: power rails under load (ripple, transient tolerance), ballast behaviour (pre‑ignition, ignition, sustain stages), LED/laser drivers (current regulation, interlock logic), and mainboard interfaces (LVDS/eDP signalling to the engine, I2C telemetry for panel or colour management). Our aim is to stabilise the projector’s environment first—cooling and power—then restore optical performance via cleaning, re‑alignment and calibration.
Why stability first?
Projector symptoms often cascade. A marginal fan or clogged duct raises internal temperature, which the firmware interprets as risk, throttling output or provoking a shutdown. Fix the airflow and the apparent “electronic” problem disappears. We remove root causes before calibrating outcomes.
- Intake & Exhaust Health. Clean filters, verify duct integrity, ensure fan bearings and PWM control are nominal.
- Power Integrity. Measure all rails for ripple/noise; validate soft‑start and brown‑out behaviour; examine ballast or laser drivers.
- Optical Cleanliness. Assess light‑engine windows, prisms and polarisers; adopt lint‑free, solvent‑appropriate cleaning in a controlled environment.
- Signal Path Sanity. Check mainboard video paths, scaler ASICs, HDMI input boards, EDID handshakes and HDCP states.
- Calibration. Re‑establish colour balance and convergence within sensible tolerances for the model and environment.
Common Sony Projector Symptoms We Resolve
From “no power” to subtle colour casts, many issues stem from just a handful of physical causes. Below is a practical overview.
No Power, Boot Loops, or Sudden Shutdowns
We examine PSU startup sequencing, standby rails, PFC stages, and protection lines. Ageing electrolytics, fatigued solder joints on high‑current paths, and thermistors that have drifted out of spec are frequent culprits. We also evaluate shutter interlocks and door sensors, as some Sony designs inhibit power if lamp covers or service panels aren’t fully latched.
Overheating, Loud Fans, or Thermal Throttling
Thermal faults often trace to blocked intake filters, dust‑loaded heat sinks, or fan bearing wear. We restore airflow, replace failing fans with like‑for‑like profiles (RPM/PWM), re‑paste critical components, and reset thermal control to factory behaviour. Laser units particularly rely on tight thermal windows to maintain colour stability and output.
Flicker, Dimming, or Unstable Brightness
Lamp‑based models may exhibit arc instability as lamps age or if ballast ignition energy is marginal. In solid‑state systems, driver PWM irregularities or colour‑wheel (laser‑phosphor) issues can produce visible flutter. Our solution set ranges from ballast and lamp replacement to driver recalibration and phosphor assembly servicing.
Colour Casts, Tinting, and Non‑Uniformity
SXRD projectors can develop subtle colour shifts from panel differential ageing or dust film on polarisers. 3LCD can show discolouration from degraded polarisers or heat‑affected optics. We restore cleanliness, replace fatigued components, and re‑calibrate white balance and gamma to recover neutrality.
Convergence Drift and Misalignment
Transport shocks and thermal cycling can skew panel alignment. We perform mechanical re‑alignment (where model‑appropriate), followed by fine electronic convergence to bring edge‑to‑edge focus and geometry back into tolerance.
Input & Handshake Problems (HDMI/HDCP/EDID)
Signal path faults manifest as intermittent sync, black screens, or reduced resolution/refresh options. We test HDMI board integrity, update firmware where applicable, and sanity‑check EDID and HDCP states between sources and the projector’s scaler.
Error Indicators & Blink Codes (General Guidance)
While Sony’s exact meanings vary by model, indicator lamps (often red/green/amber) and on‑screen messages narrow the fault domain. Below is a high‑level guide you can reference safely at home.
| Indicator | Typical Meaning | Safe User Checks | Workshop Focus |
|---|---|---|---|
| Solid Red | Thermal or cover interlock | Clean/seat filters, ensure covers are latched; verify room ventilation | Fan RPM mapping, sensor sanity, duct integrity, thermal paste |
| Flashing Red ×5 | Lamp ignition/ballast fault (lamp models) | Use genuine lamp module, reseat lamp, avoid repeated power cycling | Ballast waveform, HV leakage, PSU rails under surge |
| Flashing Amber/Green | Power sequencing/standby anomaly | Remove HDMI, power from wall for 5 minutes, then restart | Standby converter, soft‑start FETs, brown‑out detection |
| “Replace Lamp” | Hours exceeded or rapid dimming | Plan lamp module replacement; check filters first | Lamp housing, reflector cleanliness, ballast health |
| Laser Warning | Laser driver or interlock issue | Power‑cycle after cool‑down; do not bypass safety switches | Driver current regulation, interlock chain, phosphor assembly |
Note: Precise blink codes are model‑specific. We log the exact pattern and correlate it with service documentation during intake.
Sony VPL Family Error/Blink Code Reference
Use these tables as orientation aids. Meanings can differ slightly by firmware revision and model variant; we verify against service literature during intake. “User Checks” are safe steps; avoid repeated power‑cycles during persistent error states.
VPL‑HW (Lamp‑based SXRD) — e.g., HW40/45/50/55/65
| Blink Pattern | Meaning (Typical) | User Checks | Workshop Focus |
|---|---|---|---|
| Red ×2 | Cover or internal interlock open | Ensure lamp cover and panels fully latched | Microswitch integrity, interlock chain continuity |
| Red ×3 | Fan fault / RPM out of range | Clear vents; listen for fan noise; allow cool‑down | Fan replacement, PWM control line, tach feedback |
| Red ×4 | Temperature over‑limit | Clean/replace filters; improve ventilation | Heatsink cleaning, thermal paste, sensor calibration |
| Red ×5 | Lamp/ballast ignition failure | Use quality lamp module; reseat securely | Ballast HV stage, PSU surge margin, lamp current sense |
| Red ×6 | Power supply abnormality | Remove extensions; try wall outlet | PFC stage, primary caps ESR, soft‑start MOSFETs |
| Red ×7 | Internal error (main board) | — | Scaler/MCU diagnostics, firmware, BGA joints |
VPL‑VW / VPL‑XW (4K SXRD — lamp or laser depending on model)
| Blink Pattern | Meaning (Typical) | User Checks | Workshop Focus |
|---|---|---|---|
| Red ×2 | Cover interlock / shutter error | Power off, check panels/covers | Interlock switches, shutter actuator alignment |
| Red ×3 | Fan system error | Ensure free airflow; remove dust | Fan curves, tach lines, fan driver ICs |
| Red ×4 | Temperature error | Let unit cool fully; clean filters | Thermal path, heatsinks, TIM refresh |
| Red ×5 | Lamp ignition (VW lamp variants) | Use OEM‑grade lamp; reseat | Ballast ignition waveform, HV cable leakage |
| Red ×6 | Power supply fault | — | PSU rails ripple, protection thresholds, PFC |
| Red ×7 | Internal error | — | Main board diagnostics, firmware state |
| Amber/Red mix | Laser system warning (XW/laser) | Do not bypass interlocks | Laser driver telemetry, interlock chain, sensors |
VPL‑FHZ / VPL‑PHZ (Professional Laser Phosphor)
| Indicator | Meaning (Typical) | User Checks | Workshop Focus |
|---|---|---|---|
| Laser Warn | Laser driver current anomaly | Power‑cycle after cool‑down | Driver MOSFETs, current sense, telemetry |
| Red ×3 | Cooling system error | Ensure vents clear; environment temp | Fan arrays, liquid loop (if present), sensor mapping |
| Red ×4 | Thermal over‑limit | Improve room airflow | Heatsink integrity, TIM, duct sealing |
| Red ×6 | Power supply abnormality | — | PSU primaries/secondaries, soft‑start, surge events |
| Status MSG | Phosphor wheel abnormal | — | Bearings, encoder feedback, balance contamination |
VPL‑EX / VPL‑CX / VPL‑FX (Education/Corporate 3LCD, lamp)
| Blink Pattern | Meaning (Typical) | User Checks | Workshop Focus |
|---|---|---|---|
| Red ×2 | Cover open | Check lamp door | Interlock microswitch, latch fit |
| Red ×3 | Fan fault | Clear dust; avoid enclosed shelves | Fan replacement, PWM controller |
| Red ×4 | Over‑temperature | Clean filters; cool room | Heatsinks, ducts, sensor placement |
| Red ×5 | Lamp/ballast | Fit new lamp module | Ballast HV stage, lamp current monitor |
| Red ×6 | Power supply | — | PSU ripple/ESR, PFC stage |
These tables are informative rather than definitive. Exact meanings vary; we confirm against the model’s service guide and firmware version.
Inside SXRD: How We Restore Contrast, Uniformity & Stability
Sony’s SXRD is a reflective LCoS technology that sandwiches liquid crystal between a transparent electrode and a highly reflective silicon backplane. The architecture permits tight pixel fill‑factor, excellent native contrast, and a characteristic film‑like smoothness. Over time, performance can drift as panels age differentially, polarisers haze, or dust films settle on critical surfaces. Our workflow targets these vulnerabilities methodically.
Typical SXRD Degradations
- Panel Differential Ageing: Uneven luminance or chroma shifts between RGB channels, especially visible in skin tones and near‑neutral greys.
- Polariser Degradation: Heat‑induced birefringence or yellowing leading to tinting or reduced contrast in specific quadrants.
- Dust Film & Particulates: Mura effects or “dirty screen” patches, most visible in pans over bright fields.
- Convergence Drift: Slight misregistration causing coloured fringing on high‑contrast edges.
Remedial Actions
We start by restoring the light engine’s physical cleanliness. Using manufacturer‑safe solvents and lint‑free techniques, we clean accessible optical surfaces and re‑establish the intended polarisation pathways. Where age‑affected polarisers warrant replacement, we match optical characteristics closely to maintain Sony’s tonal intent. We then tackle panel alignment—mechanical first, followed by electronic convergence—to re‑centre geometry and edge focus. Calibration locks the result, with 2‑point/10‑point greyscale and colour management to meet sensible targets for the model and usage.
Outcome
Expect a perceptible return of shadow detail, cleaner whites, and improved motion coherence. The goal isn’t to over‑tune but to let SXRD’s inherent strengths speak again.
3LCD Service: From Polarisers to Prism Cleanliness
3LCD splits light into primary colours, modulates each via transmissive LCD panels, then recombines through a prism assembly. Its colour volume and ANSI brightness suit classrooms and meeting rooms, where dust and duty cycles can be severe. We prioritise airflow restoration, polariser health, and panel drive stability to recover crisp, balanced images.
Key Failure Modes
- Heat‑stressed polarisers leading to a green or magenta bias
- Fan RPM loss triggering thermal throttling and intermittent shutdown
- Clogged intake filters reducing brightness and accelerating heat damage
- Ageing PSU rails producing noise on panel drive lines
What We Do
We replace failing fans with correct RPM/PWM profiles, refresh thermal interfaces on heat‑critical parts, and clean prism windows with carefully controlled methods. If polarisers have crossed the threshold from recoverable haze to permanent colour shift, we fit replacements matched to the optical train’s angles and coatings. Colour and gamma are then recalibrated for the intended environment—projection distance, screen gain, and ambient light.
4K Laser (VPL Series): Consistency Through Thermal Discipline
Laser‑phosphor systems provide rapid start‑up, consistent brightness and long service life, but they depend on strict thermal control and driver integrity. Small deviations in coolant flow (if liquid‑cooled), fan curve, or heatsink contact can trigger output dips or colour wobble. Our service focuses on the interlock chain, driver current regulation, phosphor wheel balance and bearing condition, and the thermal path end‑to‑end.
Laser System Checks
- Driver board telemetry and current stability under step loads
- Interlock loop verification (shutters, service covers, sensors)
- Phosphor wheel inspection for wobble, contamination, bearing noise
- Thermal profiling at idle and in sustained high‑output operation
After hardware stabilisation we validate colour over time—watching ΔE drift across warm‑up and long sessions—so that the projector settles into a predictable, repeatable state. Finally, we recalibrate for your use case: DCI‑leaning colour for cinema rooms, or punchier presentation modes for lit spaces.
Lamp‑Based VPL (HW/VW): Ballasts, Ignition & Airflow
High‑pressure mercury lamps are sensitive to both power and environment. Ignition requires a reliable high‑voltage strike while airflow keeps the arc stable and the envelope within temperature limits. As lamps age the arc may wander or flicker; a marginal ballast or tired PSU can exacerbate this into shutdowns or dimming.
Service Priorities
- Measure ignition energy and sustain waveforms
- Inspect lamp housing, reflector cleanliness and seating pressure
- Restore intake/exhaust flow; replace weak fans
- Verify ballast communication and fault reporting to mainboard
We fit quality lamp modules, avoid over‑driving, and re‑establish a cooling margin that gives the new lamp a stress‑free life. The lamp is only as good as the ballast and airflow behind it.
LED & Hybrid: Driver Cleanliness and Colour Stability
LED and hybrid emitters have long lives but still suffer from dust‑related heat rises and driver instabilities. We clean light paths thoroughly, verify PWM control integrity, and measure colour balance against reference targets across multiple output steps. If a unit displays random dimming or channel dropouts, we trace the driver chain from PSU to emitter, looking for intermittent connectors and heat‑stressed components.
Installation Environment & Screen Pairing: Protecting Performance
Great repairs deserve a supportive environment. Many recurrent projector faults trace back to installation compromises—heat pockets, dust pathways, cable runs or unsuitable screens. This guide translates service‑bench experience into practical, room‑side decisions.
1) Ventilation & Thermal Zoning
Projectors recycle room air. If the air around the chassis warms faster than the room at large, fans must work harder, noise rises, and thermal sensors edge toward limits. Avoid boxed‑in shelves or soffits without dedicated airflow. For hush boxes, provide a separate intake and exhaust path with quiet inline fans driven by a thermostat. Leave 30–50 cm around intakes and exhausts; more if the projector sits near a ceiling where stratified heat collects.
2) Dust Control & Service Access
Every filter is a maintenance promise. Where feasible, place the projector so that filters can be reached without ladders or dismantling fixtures. In dusty venues (workshops, classrooms near corridors), consider pre‑filters and a quarterly schedule. Keep carpet fibres and soft furnishings away from intakes; micro‑lint fouls fan bearings over time.
3) Power Quality & Ground Hygiene
PSU protection circuits are vigilant. Brown‑outs and voltage sags mimic internal faults. Use short, high‑quality mains runs; avoid daisy‑chained extension blocks. For venues with variable supply quality, a voltage‑conditioning UPS with sufficient throughput avoids nuisance trips. Keep source equipment on the same earth domain to reduce ground‑loop‑induced HDMI issues.
4) HDMI/EDID/HDCP Practicalities
Long copper HDMI runs at 4K can be fragile. Above 10 m, consider active optical HDMI or HDBaseT extenders with quality terminations. Store calibrated EDID where gear permits, and power up in an order that lets the display announce capabilities early (projector first, then sources).
5) Throw, Lens & Focus Discipline
Stay within the lens’s comfort zone. Operating at extreme throw limits can accentuate focus non‑uniformity and make convergence appear worse than it is. If the projector has lens shift, prefer optical shift over keystone. Keystone is a last resort; it trades pixels for geometry.
6) Screen Material & Gain Matching
Match screen gain to room brightness and seating spread. In dark cinema rooms with SXRD/VPL‑VW/XW, a 1.0–1.3 gain white screen preserves tonal nuance. In brighter rooms, consider 1.3–1.5 gain or ambient‑light‑rejecting (ALR) materials, but evaluate sparkle and colour shift. Laser models with wider colour volume may reveal screen tint; validate with colour patches before committing.
7) Size, Luminance & Ageing
As light sources age, peak luminance falls. Choose a screen size that leaves headroom for future dimming. For lamp models, expect noticeable output drop in the final third of lamp life; for laser, brightness reduction is slower but still cumulative. Calibrate mid‑life to avoid chasing numbers at end‑of‑life.
8) Acoustic Considerations
Fan noise is often a placement problem. Ceiling mounts above seating radiate directly to listeners. If room permits, move the projector behind seating or into a ventilated rear niche. Avoid rigidly coupling mounts to resonant plasterboard; use isolation pads or resilient fixings.
